Product description
PC PeripheralsKeyboards & AccessoriesCustom keyboardSwitches from Wuque Studio

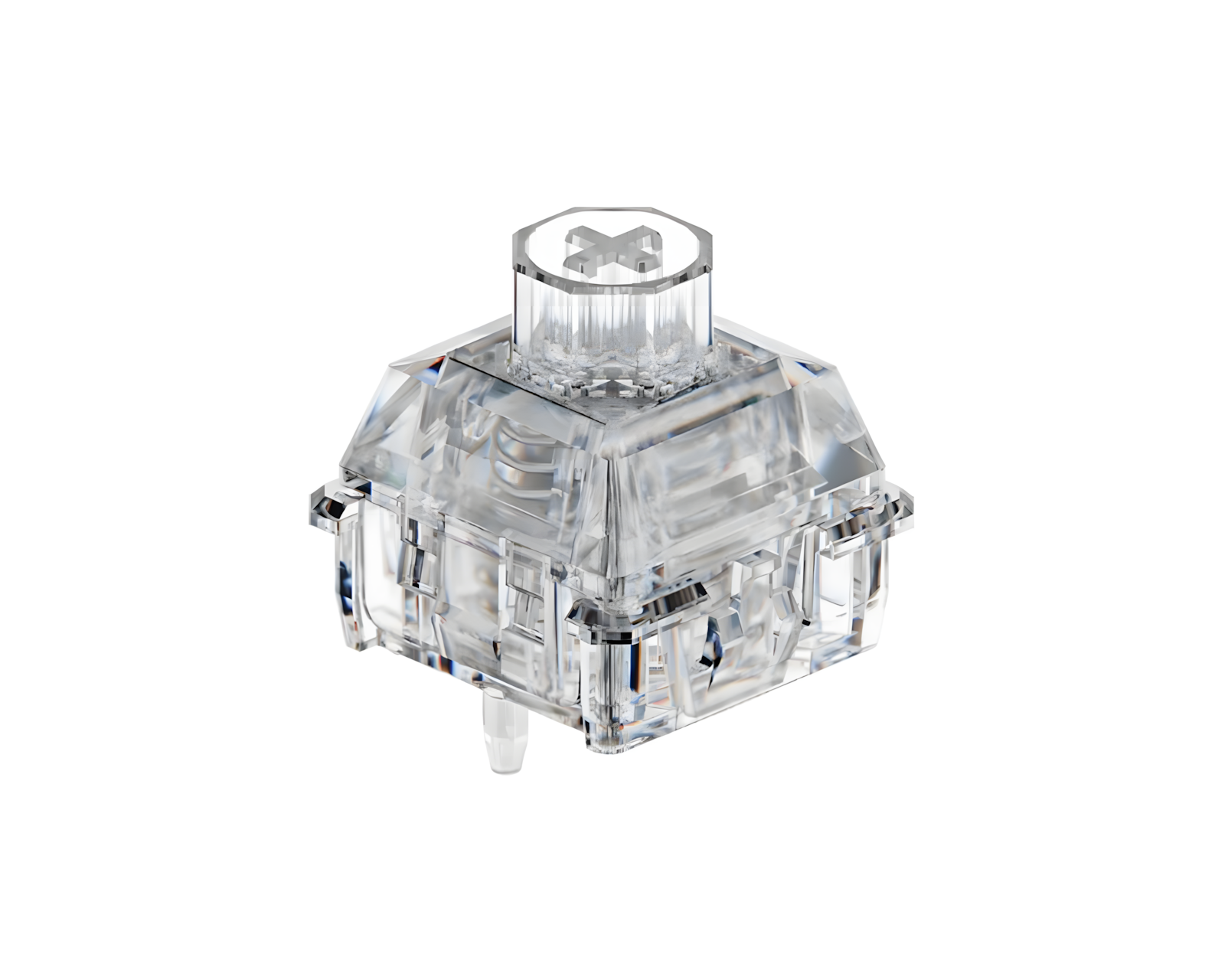

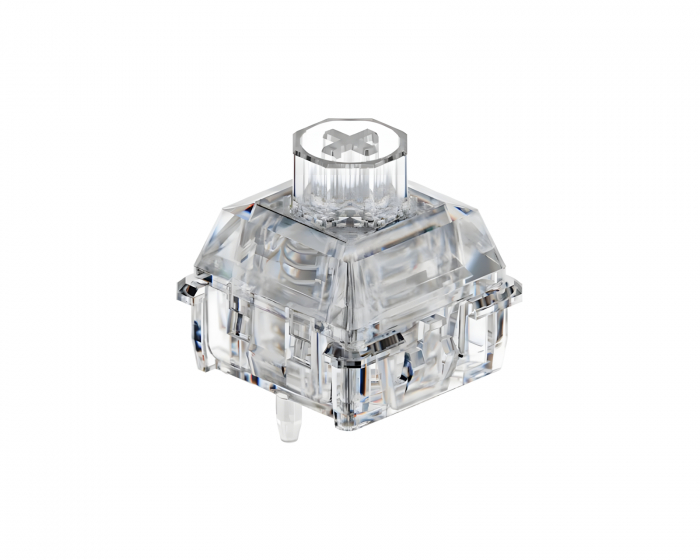

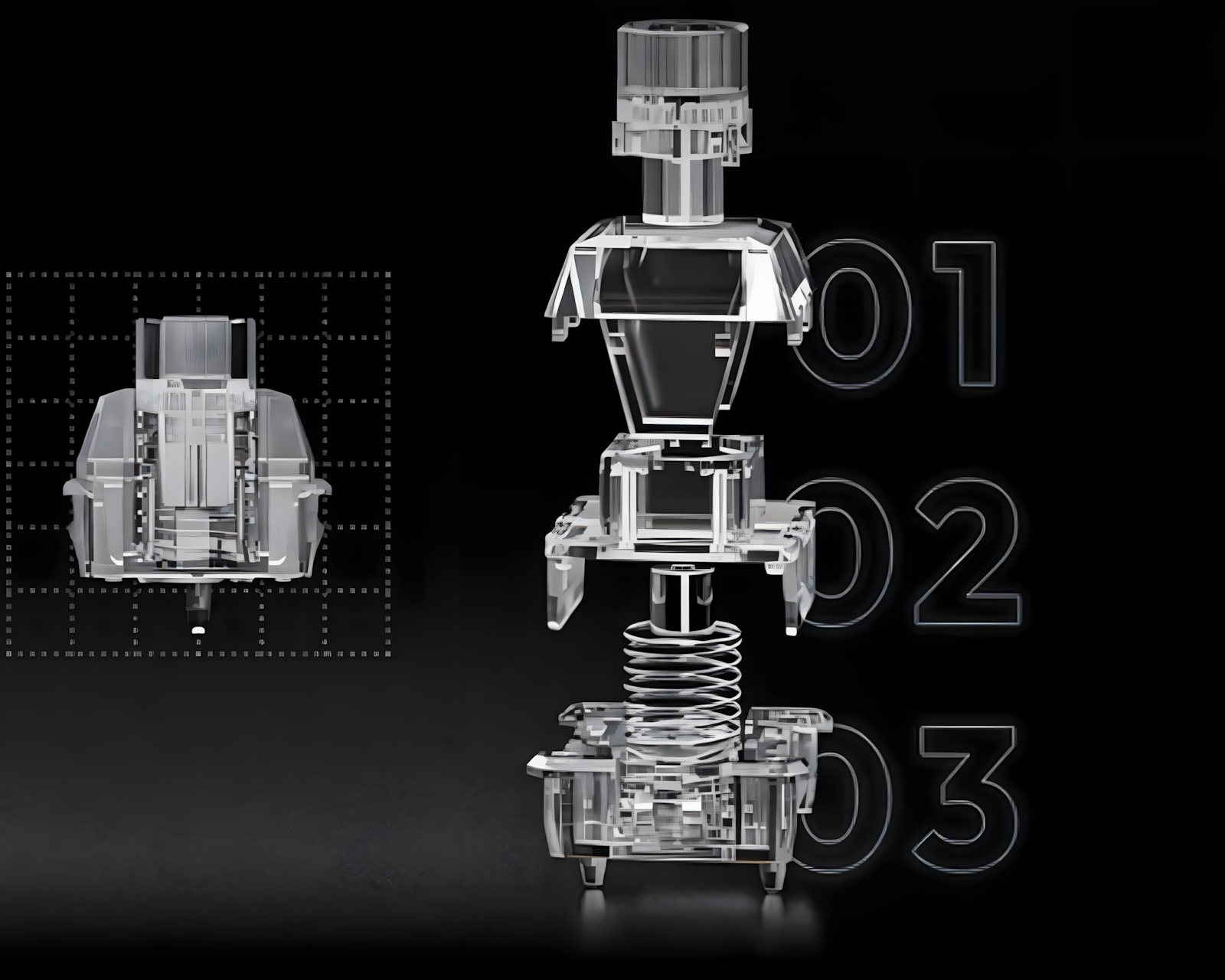

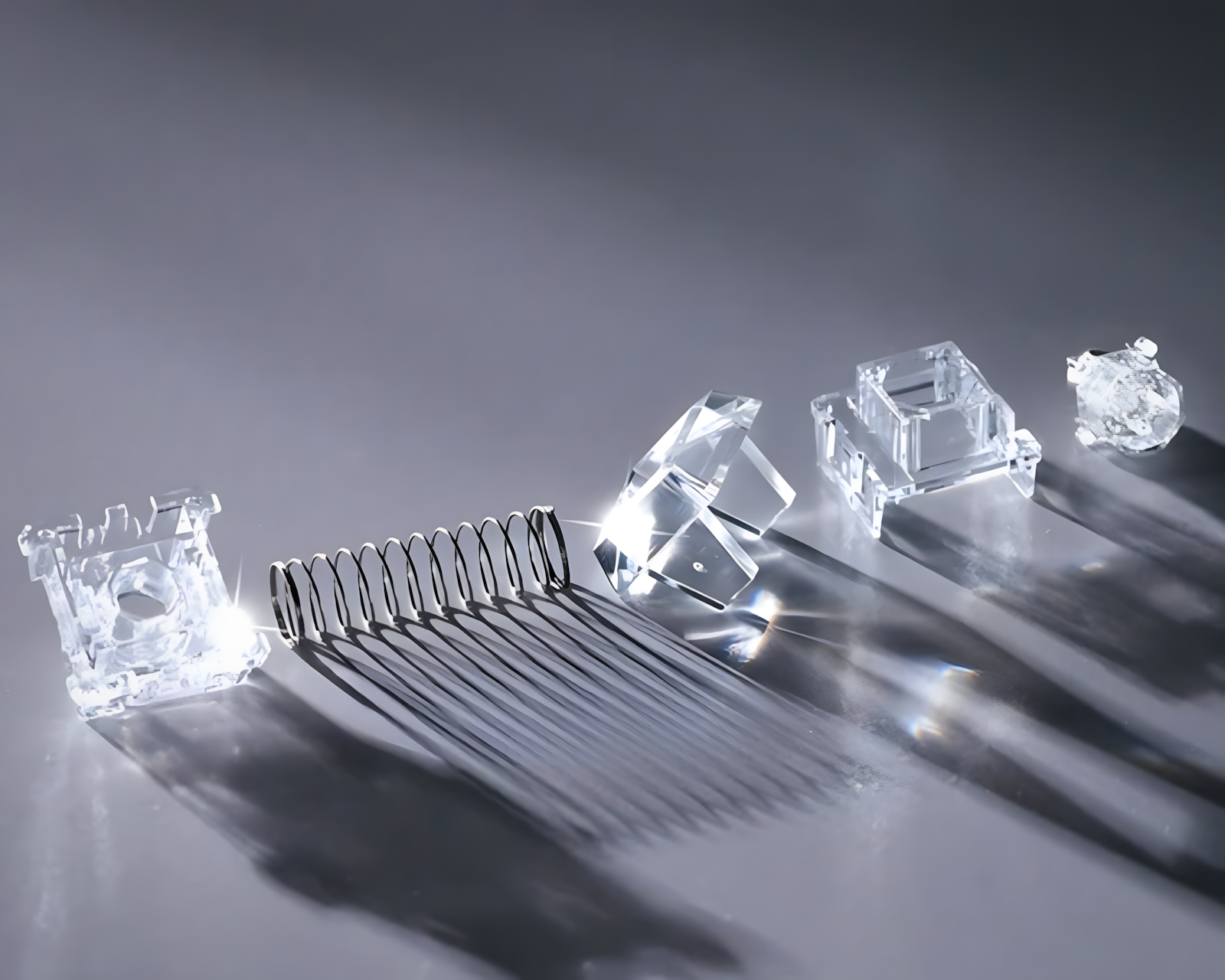

WS Flux Cullinan HE Linear Switch is a magnetic linear switch that offers a smooth, compliant, and responsive typing experience. It has an initial actuation force of 35 ± 5 gf and an extra long, single-stage spring of 23 mm that provides an elastic movement and a smooth return. The design suits users who value precision and comfort for both gaming and typing.The switch's four-part sliding structure with upper guiding rails contributes to a stable and balanced movement. The transparent PC housing and integrated light guide also make it suitable for keyboards with RGB lighting. When pressed, the plastic contact in the bottom housing provides a softer, more traditional mechanical bottom feel.
Summary
- Type: Magnetic linear switch
- Initial actuation force: 35 ± 5 gf
- Bottom force: 45 ± 7 gf
- Spring: 23 mm, single-stage
- Total travel length: 3.50 ± 0.10 mm

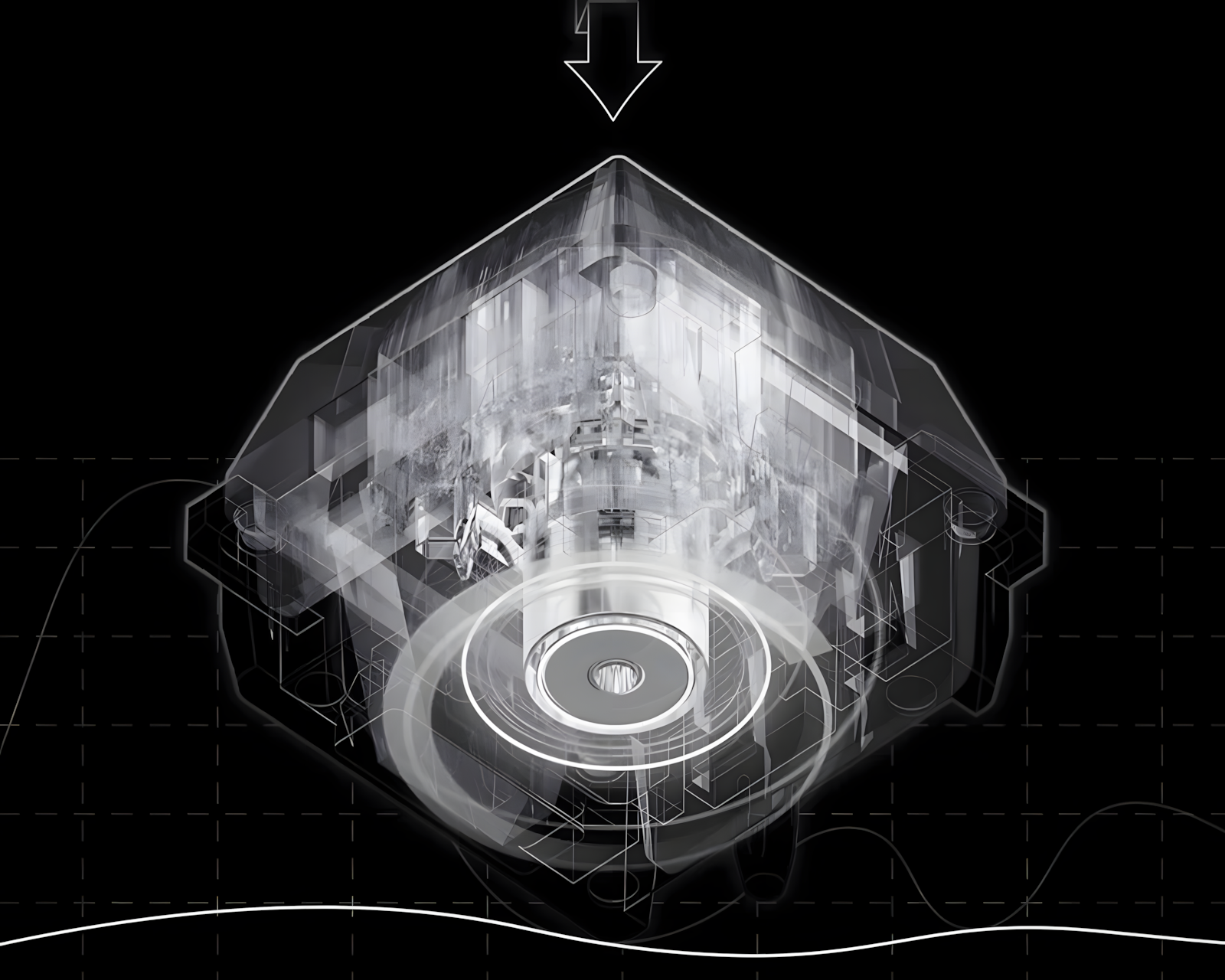

- Magnet: 3.6 mm central magnet
- Material: Transparent PC housing with integrated light guide
- Feel: Soft, compliant, and dampened
- Suitable for: Gaming and typing
Article number:
Our article number: 39889
Manuf. article number: 010404010165
Brand
Just a few years ago, in 2020, Wuque Studio was founded by two enthusiastic technology lovers. Since then, Wuque Studio has expanded rapidly, reaching out to enthusiasts all over the world. Their focus on innovative and unique design makes their custom keyboards and accessories a market favorite.
Through careful listening and consideration of feedback from their dedicated community of gaming and keyboard enthusiasts, Wuque Studio strived to create the perfect keyboards and other accessories for gaming. The aim is for the range to suit each user's needs and requirements through pioneering keyboard design and innovation projects.
Specifications
Properties
| Bottom out | 45±7gf |
| Pre-travel | 35±5 |
| Type | Linear |
| Color | Transparent |
