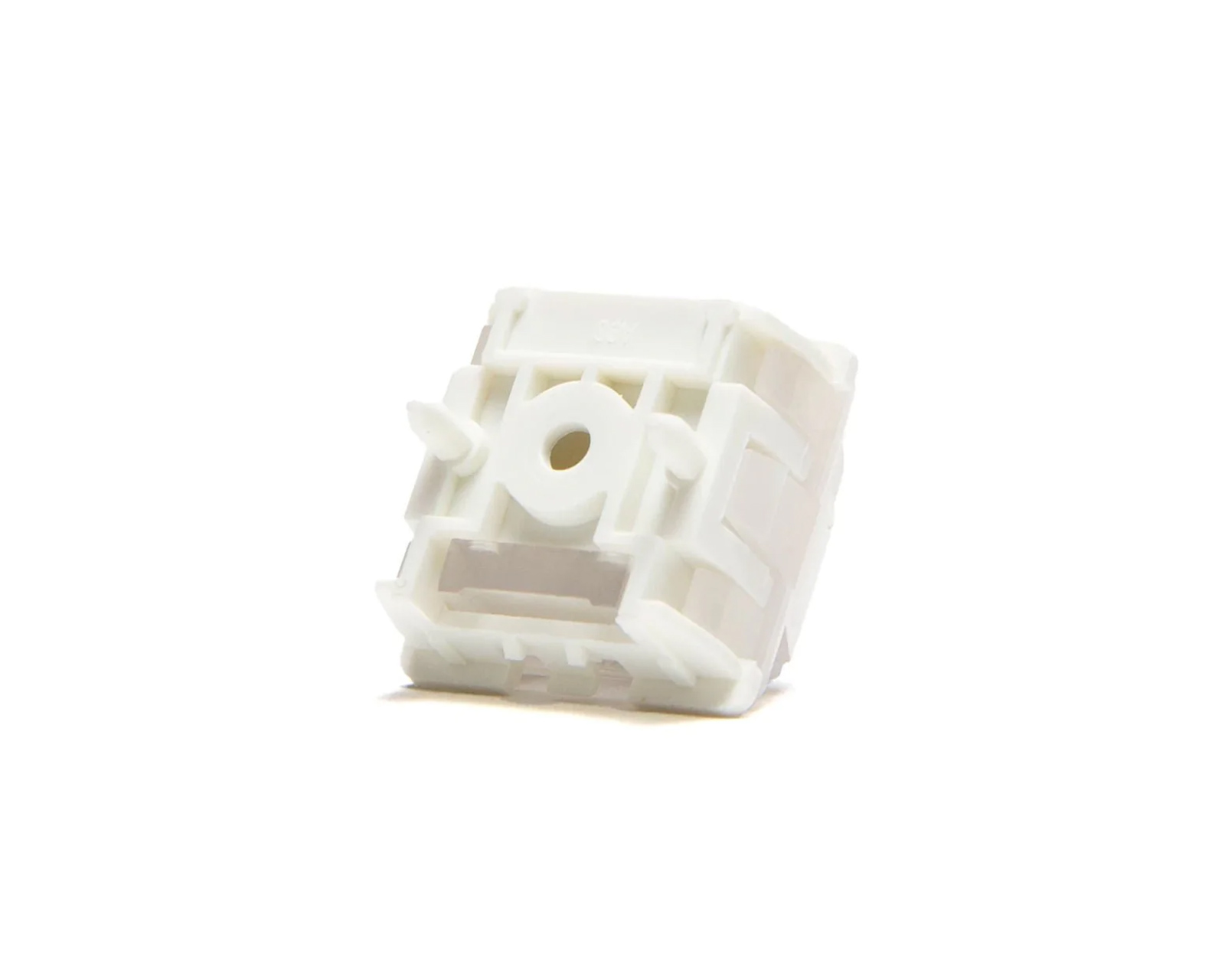

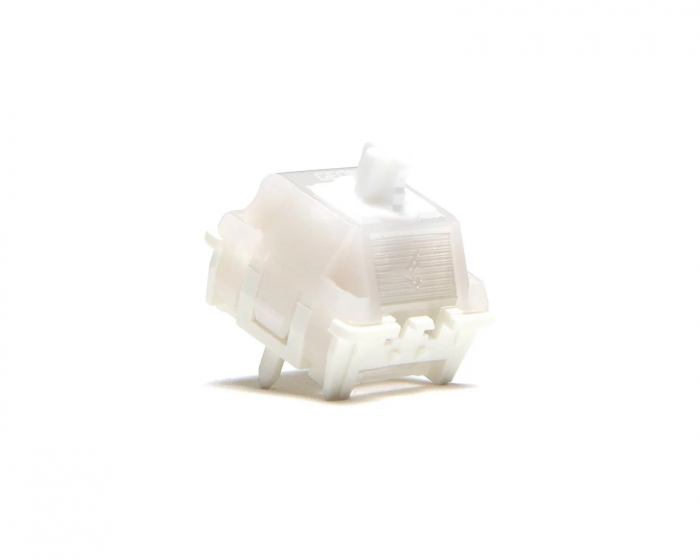

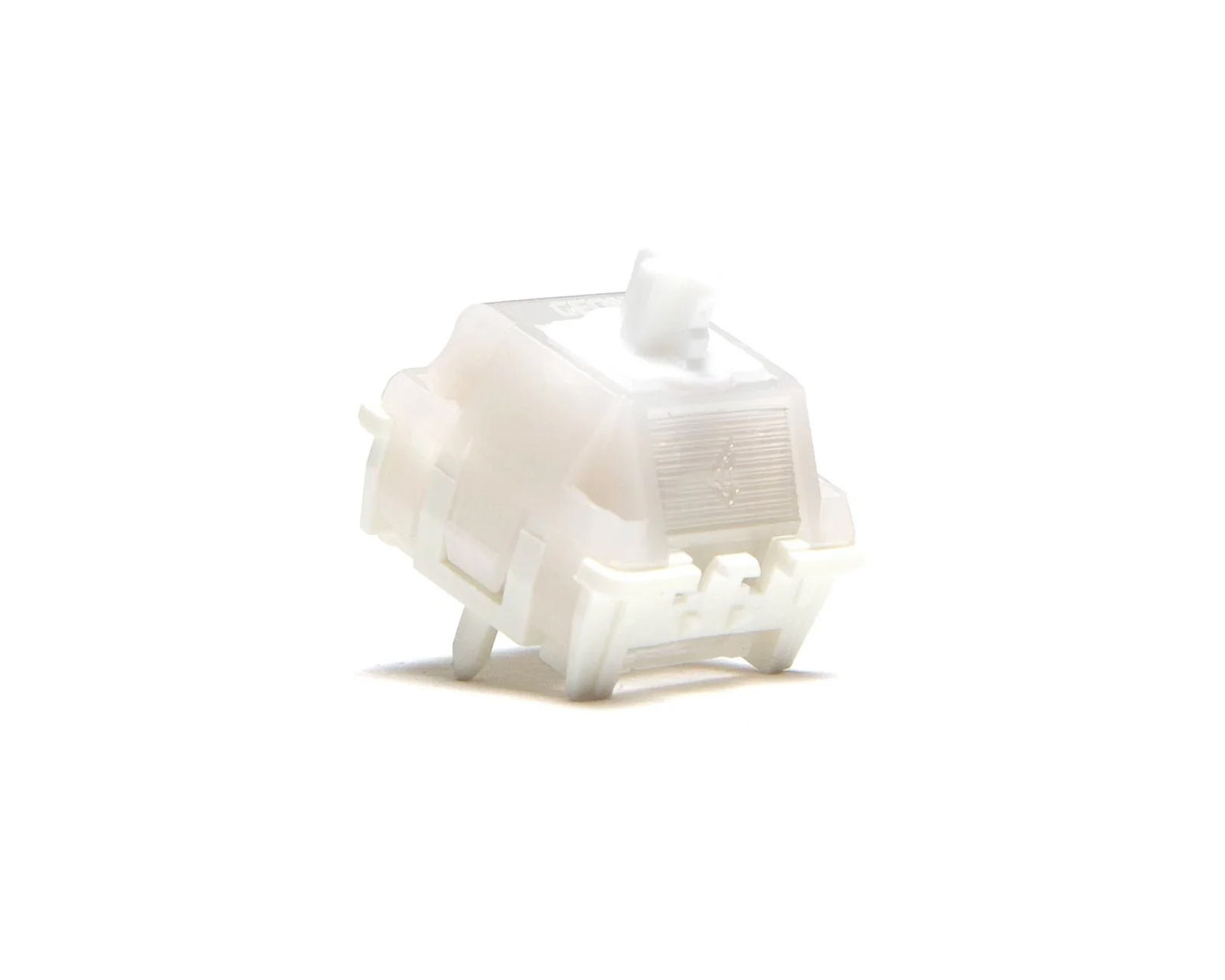

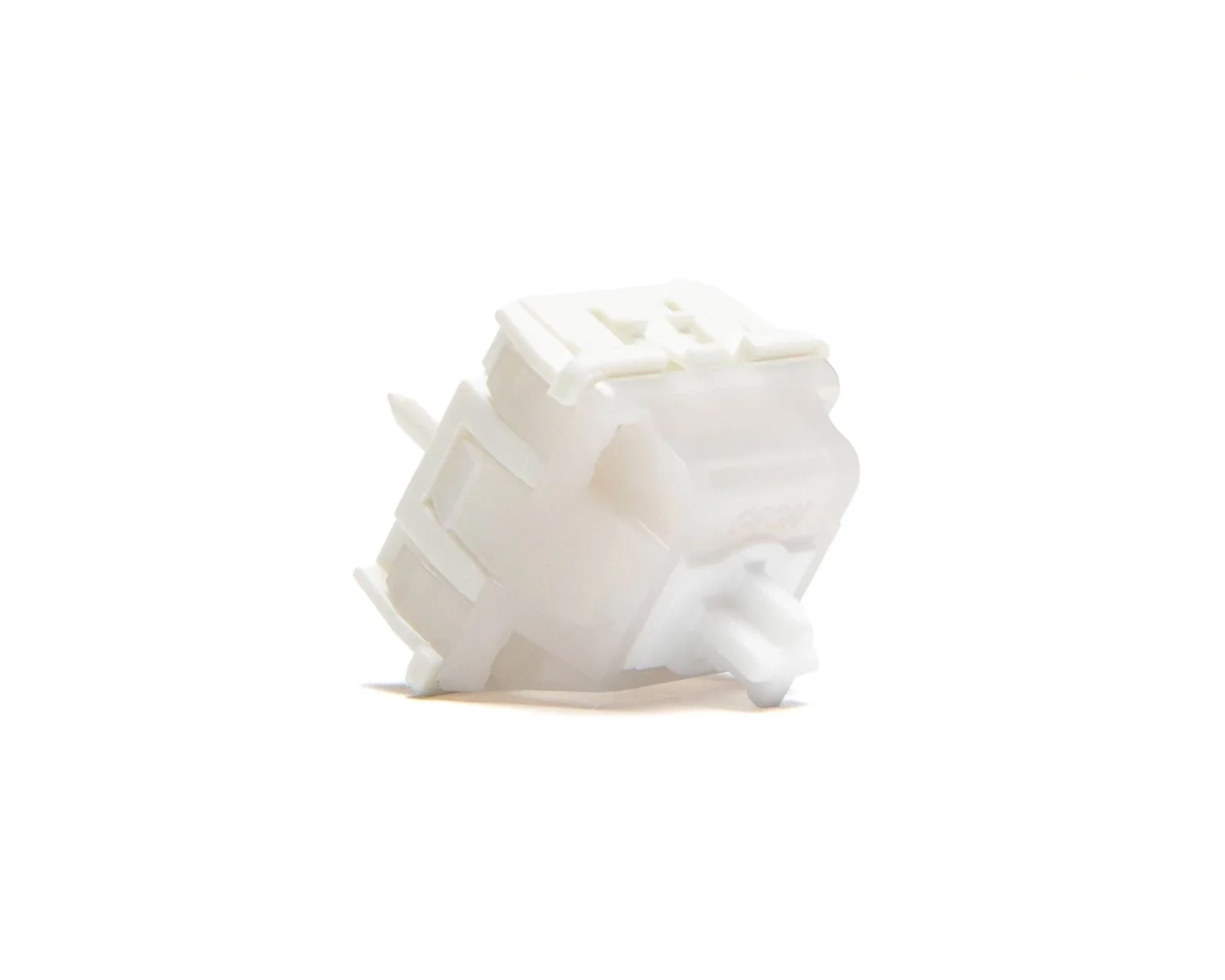

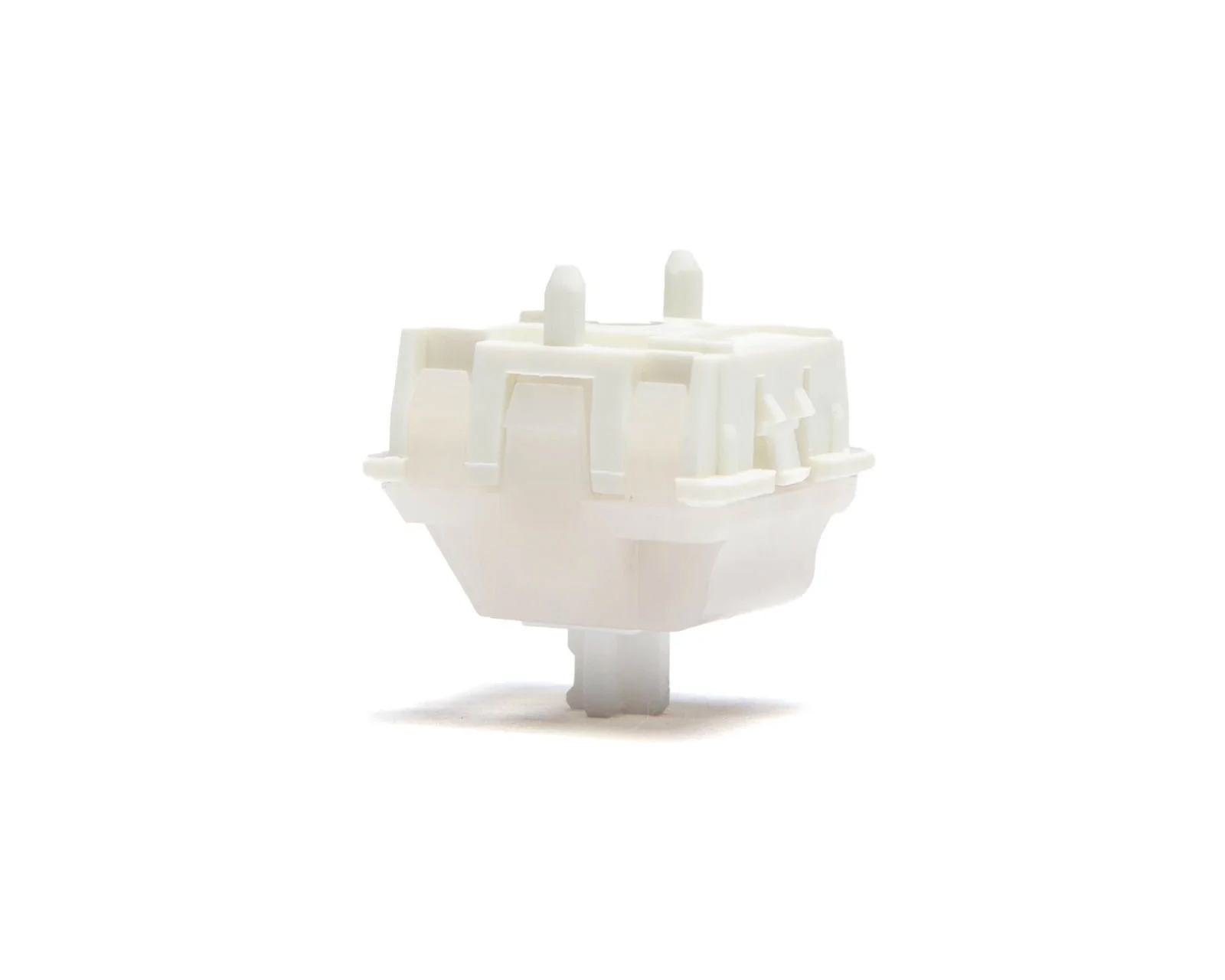

Geon Works GEON Raw HE Linear Switch

Product description

PC PeripheralsKeyboards & AccessoriesCustom keyboardSwitches from Geon Works

Geon Works has finally released their official RAW magnetic switch, the RAW HE! With this hall effect switch, you can set the activation of the switch exactly where you want. This is made possible by magnets inside, and Hall sensors that sense the distance between each other.

The operating speed is 10 times faster than a regular mechanical switch.

• Type: Linear. hall effect
• Stem: POM
• Housing material: Bottom Nylon, Upper PC
• Initial Force: 27g / 36g / 45g
• Bottom Touching Force: 40g / 50g / 60g
• Pre-Travel: 0.1 ~ 3.3mm Analogue
• Pre-Lubed: Yes
• Spring: 15mm
• Total travel: 3.4mm

Article number:

Our article number: 34648
Manuf. article number: GEON-RAW-HE

Brand

Properties

Bottom out	40g/50g/60g
Pre-travel	0.1 ~ 3.3mm
Type	Linear
Color	White
