Product description
PC PeripheralsKeyboards & AccessoriesCustom keyboardSwitches from Gateron

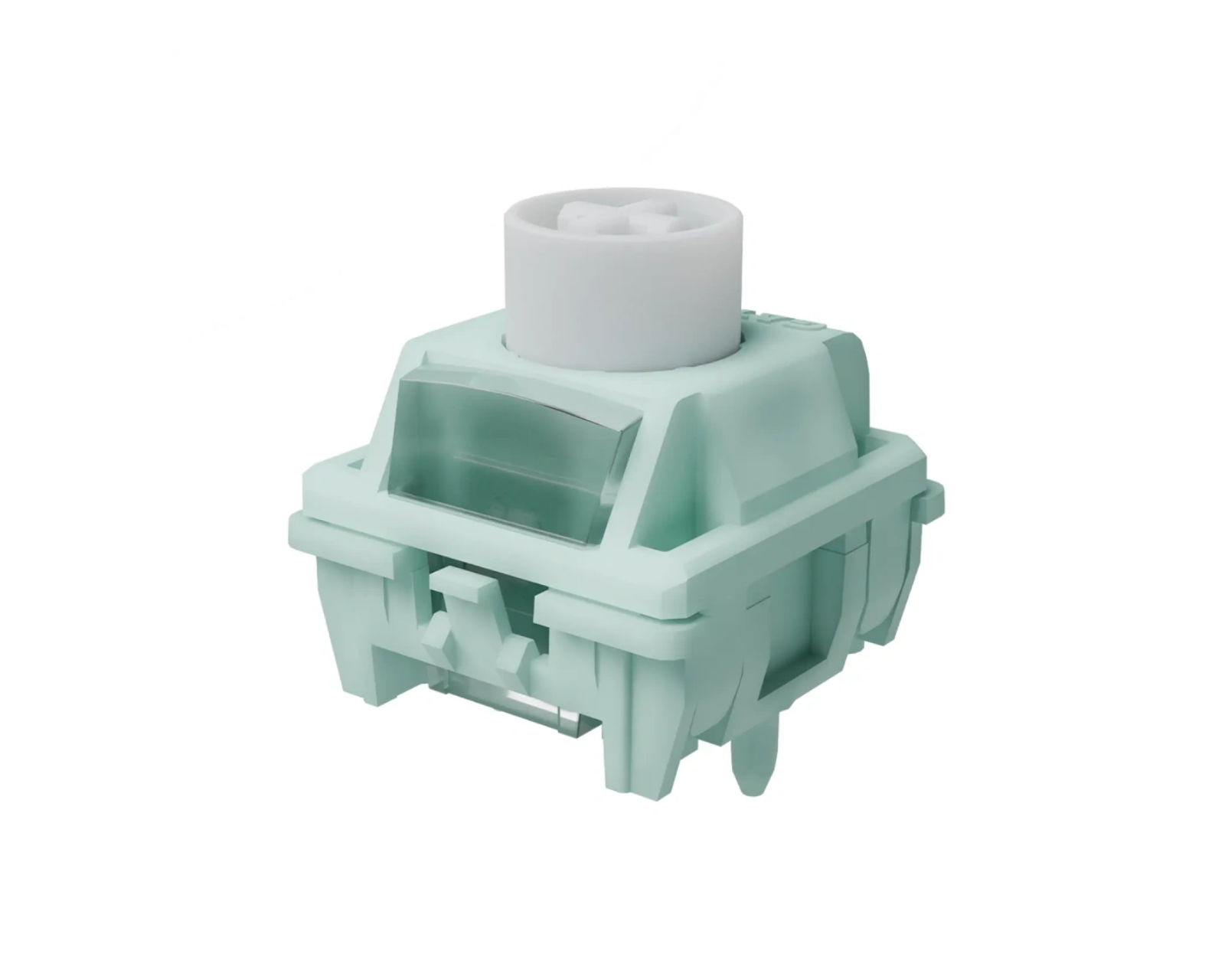

Magnetic Jade Silent Switch is designed to provide a quiet and responsive typing experience. It has an initial force of 33±5 gf and a bottom-out force of 45±10 gf, which ensures balanced resistance during use. With a total travel of 3.2±0.2 mm and a freely set pre-travel, this switch is suitable for both gaming and office work where noise level is an important factor.The magnetic technology in the Magnetic Jade Silent Switch allows for faster and more reliable activation compared to traditional mechanical switches. The initial magnetic flux is 125±8 GS at PCB 1.2 mm, which provides high sensitivity. The bottom-out magnetic flux reaches 700±30 GS at the same PCB thickness, contributing to stability and responsiveness in every keystroke. The switch's springs are customized to optimize the typing feel and are pre-lubed for better performance and comfort.
Summary
- Typing: Linear
- Initial Force: 33±5gf
- Bottom-out Force: 45±10gf
- Pre-Travel: Freely setting
- Total Travel: 3.2±0.2mm
- Spring: Customized Spring
- Initial Magnetic Flux: 125±8GS (PCB1.2mm)
- Bottom-out Magnetic Flux: 700±30GS (PCB1.2mm)
- Pre-Lubed: Yes
Article number:
Our article number: 39689
Manuf. article number: KS-20MJF10B045NW-G62
Brand
Switches with the latest technology from Gateron - For 16 years, Gateron has researched, developed, and been a leader in the development of various switches. Through continuous research and development, they have strived to produce efficient, affordable, and reliable switches that meet the needs of users. With Gateron, you can find the accessories for your keyboard to create the custom keyboard you dream of.
Gateron offers a wide range that includes everything you could need - from mechanical switches to linear, tactile, magnetic, silent, and clicky variants. Always sticking to the concept of innovation, Gateron strived to meet the customization needs of the market through regular production of different product ranges.
Specifications
Properties
| Hall Effect | Yes |
| Type | Linear |
Warranty
| Manufacturer's warranty | 1 year warranty |
