Wuque Studio ZOOM TKL DYNA - Ink Green

Name: Wuque Studio ZOOM TKL DYNA - Ink Green
Brand: Wuque Studio
SKU: 35362
Price: 229.99 USD
Availability: InStock

Selected accessories

Geo Linear Switch (Pre-lubed)

Switches

$1.02

Add

Info

Universal Device Organizer for Desk - Grey

Accessories

$9.99

Add

Info

Product description

PC Peripherals Keyboards & Accessories Custom keyboard Barebone from Wuque Studio

Note that the keyboard requires assembly, no switches and keycaps are included.

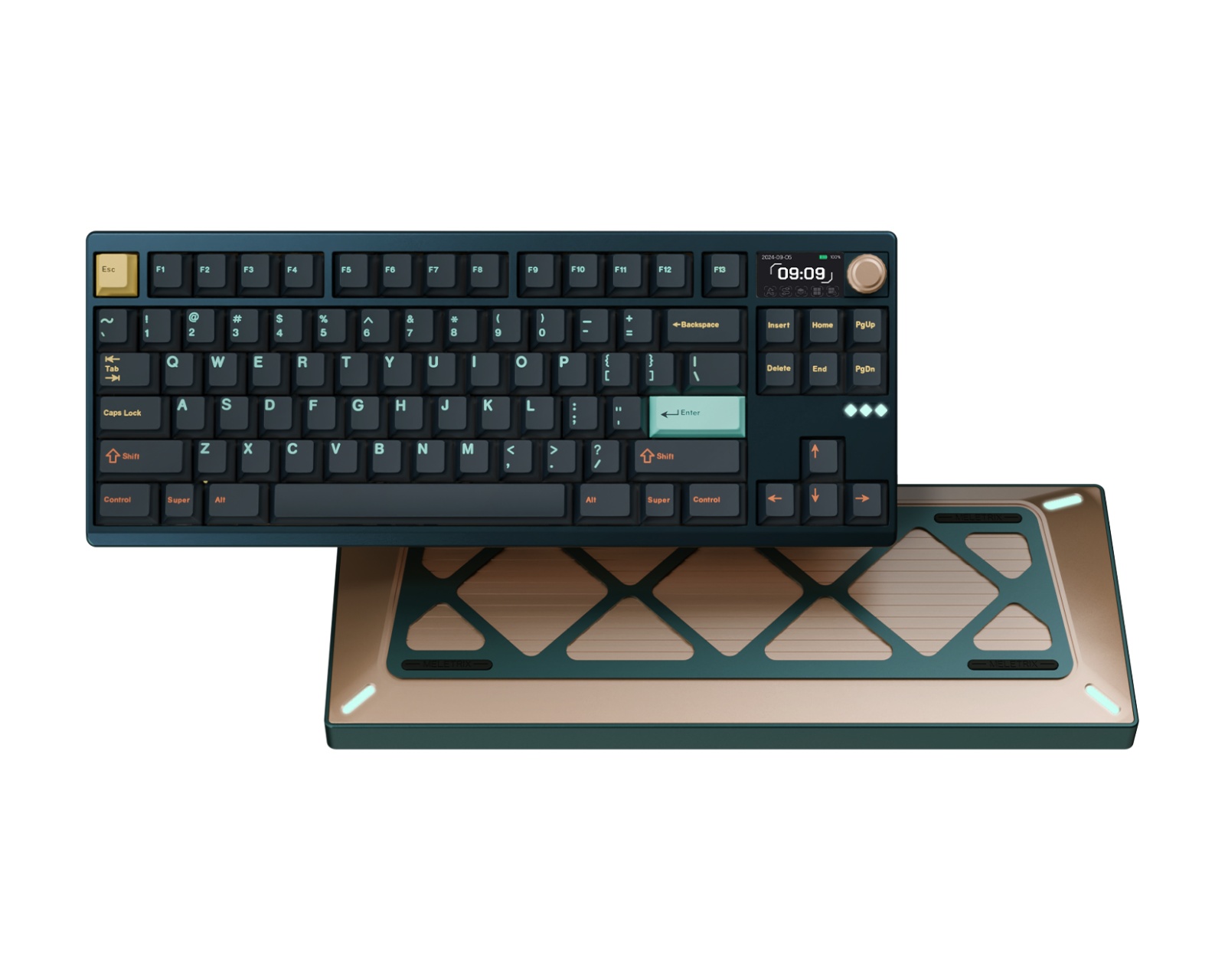

ZOOM TKL DYNA is a barebone kit from Wuque Studio that offers a versatile user experience. The modular design allows adjustments of the screen and controls, giving users the freedom to customize their settings. The unit features a 6063 aluminum casing and a screwless ball joint system for easy switching between different mounting options. It supports both wired connection via USB-C and wireless via Bluetooth 5.4 and 2.4 GHz.

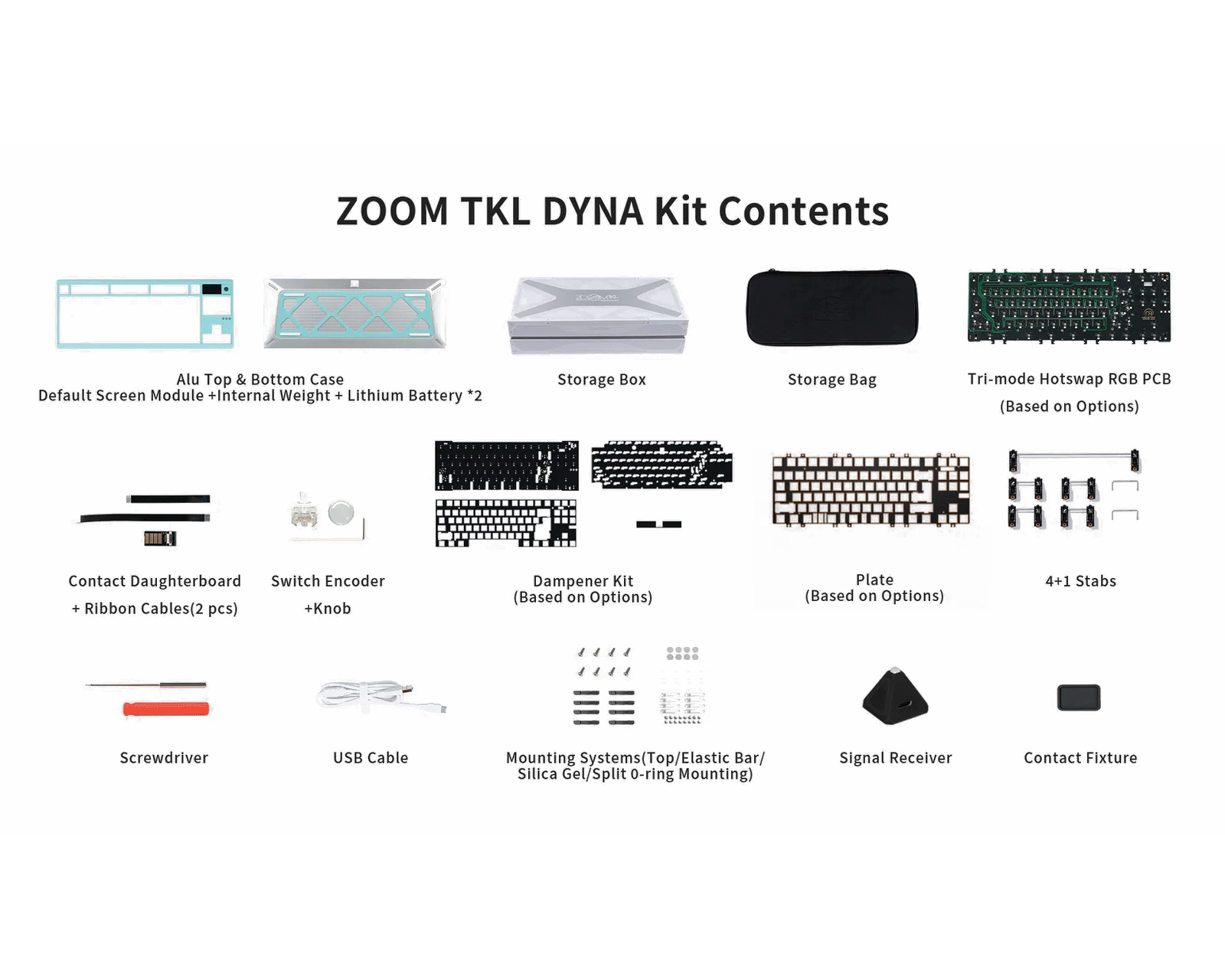

The following is included in this kit

PCB Type: Tri-mode Non-flex Cut RGB PCB
Plate: PC
Dampening Foam Kit: Standard

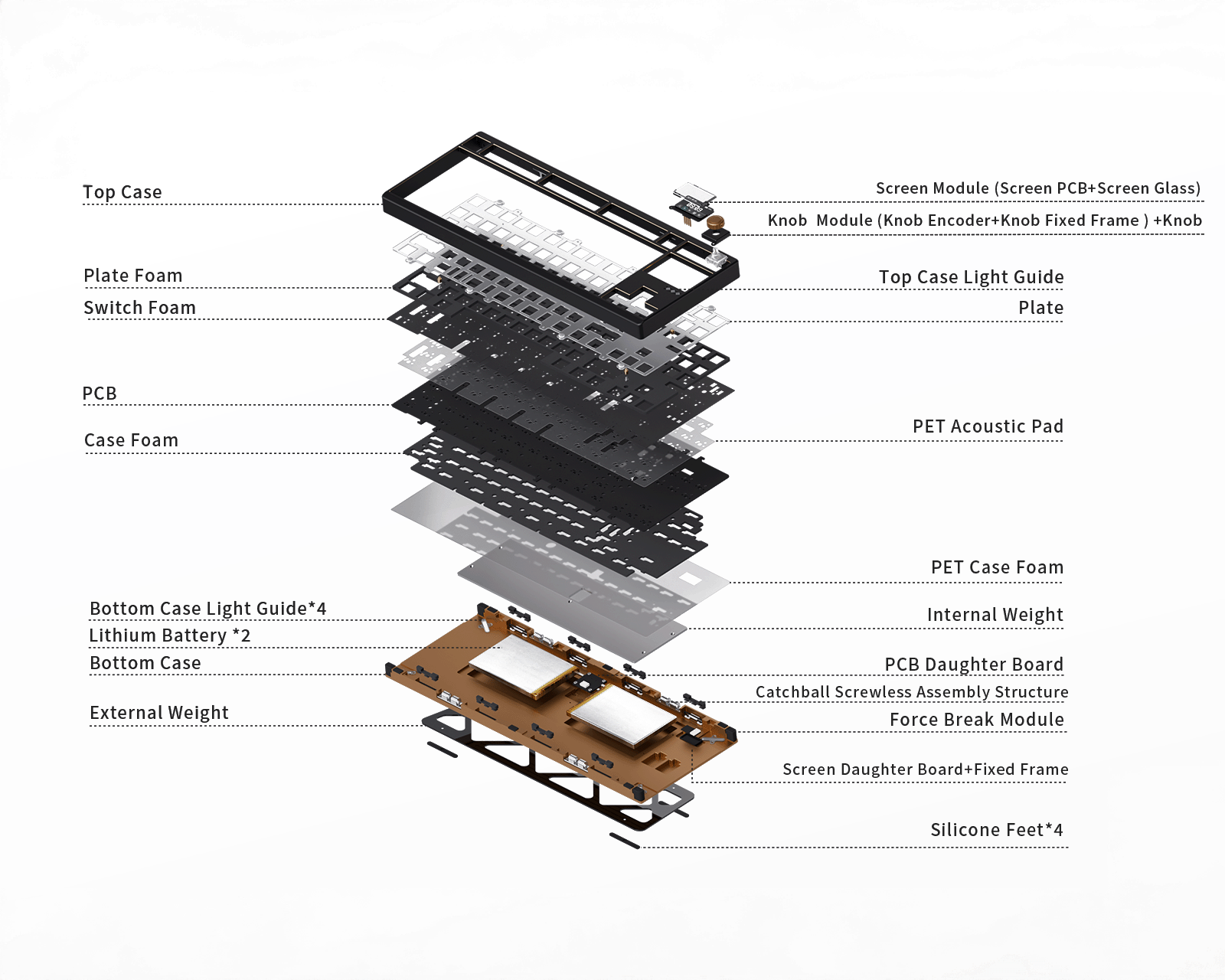

The build quality of the ZOOM TKL DYNA is characterized by its modular design with a tri-mode non-flex PCB, 8K polling rate with 0.6ms latency for wired connection and 4K polling rate for 2.4 GHz, ensuring fast response. It also has two 4000mAh batteries that provide long usage. The keyboard supports ANSI and ISO layouts and has a typing angle of 6.7°, offering an ergonomic experience. Additional features include an upgraded contact arrangement and improved knob design to avoid contact issues.

Summary

Aluminum casing with modular design
8K polling rate and 0.6ms latency
Flexible use for gamers and tech enthusiasts
Supports both wired and wireless connections
Multiple mounting options for individual typing experience

Article number:

Our article number: 35362
Manuf. article number: WS-ZOOM-TKL-NKGRN

Brand

Just a few years ago, in 2020, Wuque Studio was founded by two enthusiastic technology lovers. Since then, Wuque Studio has expanded rapidly, reaching out to enthusiasts all over the world. Their focus on innovative and unique design makes their custom keyboards and accessories a market favorite.

Through careful listening and consideration of feedback from their dedicated community of gaming and keyboard enthusiasts, Wuque Studio strived to create the perfect keyboards and other accessories for gaming. The aim is for the range to suit each user's needs and requirements through pioneering keyboard design and innovation projects.

Specifications

Connection

Connection	2.4GHz, Bluetooth, USB
Wireless	Yes
Compatibility	PC

Properties

Form factor	80%
Language layout	ANSI, ISO German, ISO Nordic, ISO UK
Backlight	Yes, RGB
Backlight color	RGB (16.8 m)
N-key rollover	Yes
Anti-ghosting	Yes
Hotswap	Yes
Color	Green

Size & weight

Width	356.5 mm
Depth	139 mm
Height	34.2 mm

Warranty

Manufacturer's warranty

2 year warranty
