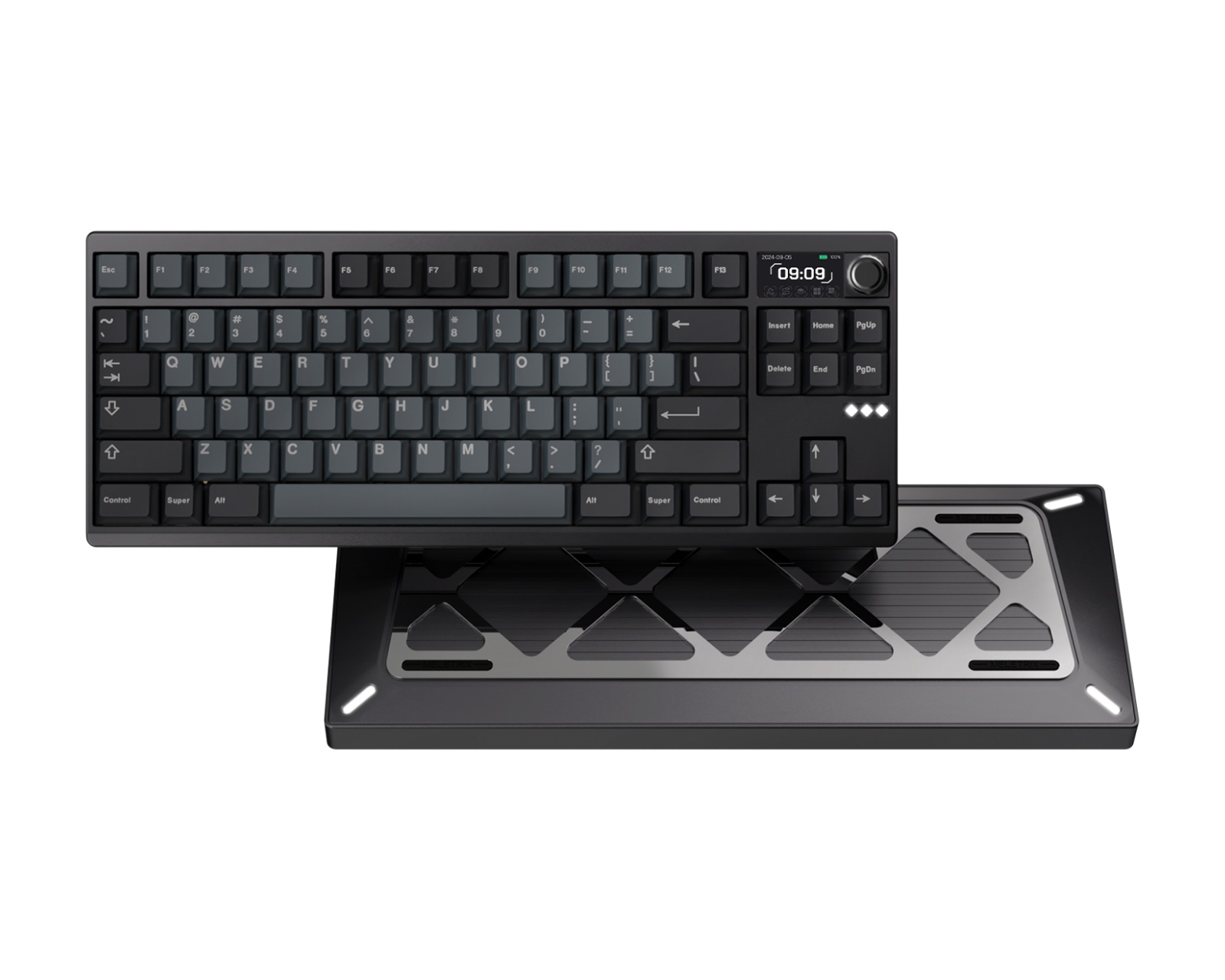

Wuque Studio ZOOM TKL DYNA - Gunmetal Gray

Product description

PC PeripheralsKeyboards & AccessoriesCustom keyboardBarebone from Wuque Studio

Please note that the keyboard requires assembly, no switches and keycaps are included.

ZOOM TKL DYNA is a barebones kit from Wuque Studio that offers a versatile user experience. The modular design allows for adjustments to the screen and controls, giving users the freedom to customize their settings. The device features a 6063 aluminum chassis and a screwless ball-bearing system for easy switching between different mounting options. It supports both wired connection via USB-C and wireless via Bluetooth 5.4 and 2.4 GHz.

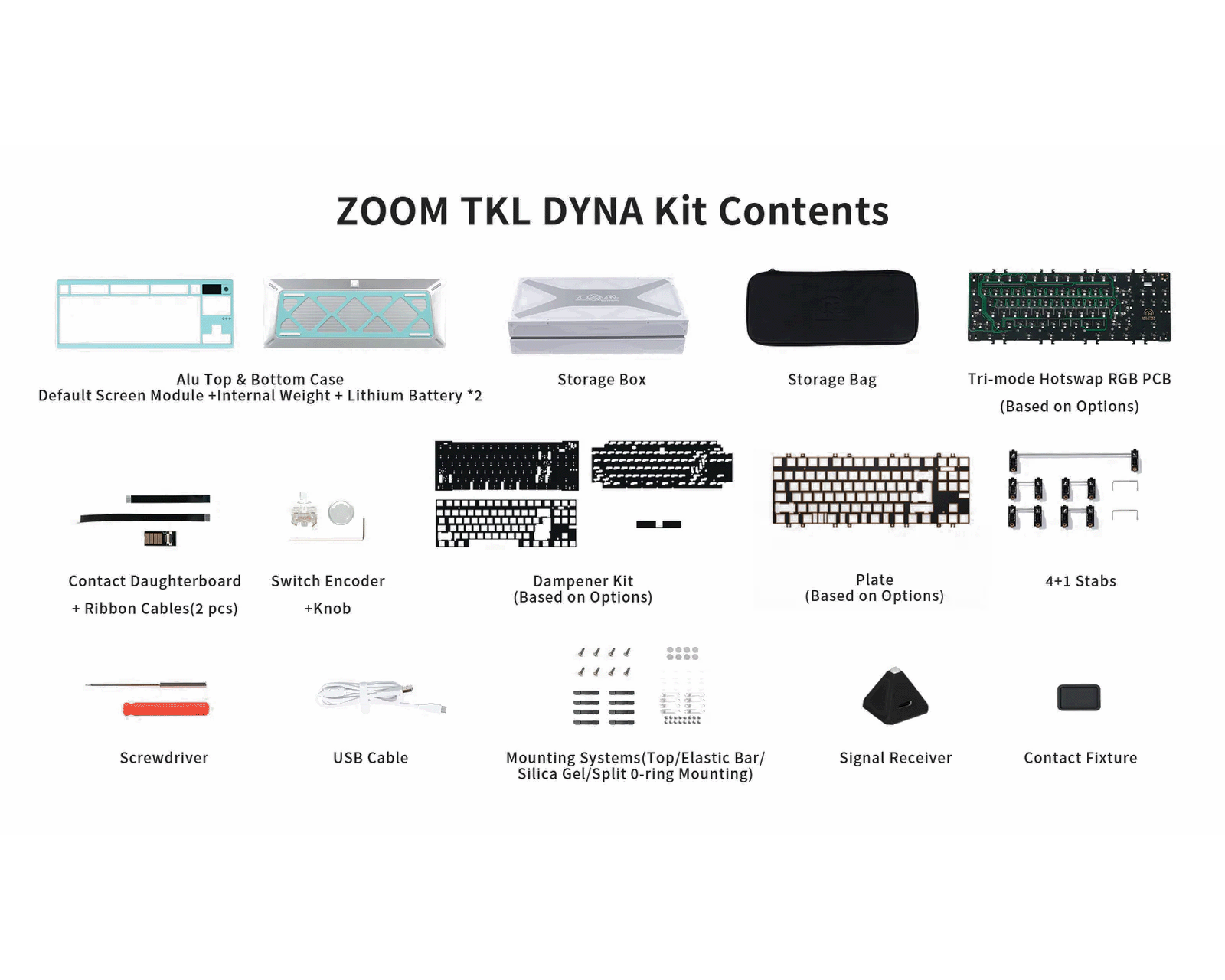

The following is included in this kit

• PCB Type: Tri-mode Non-flex Cut RGB PCB
• Plate: PC
• Dampening Foam Kit: Standard

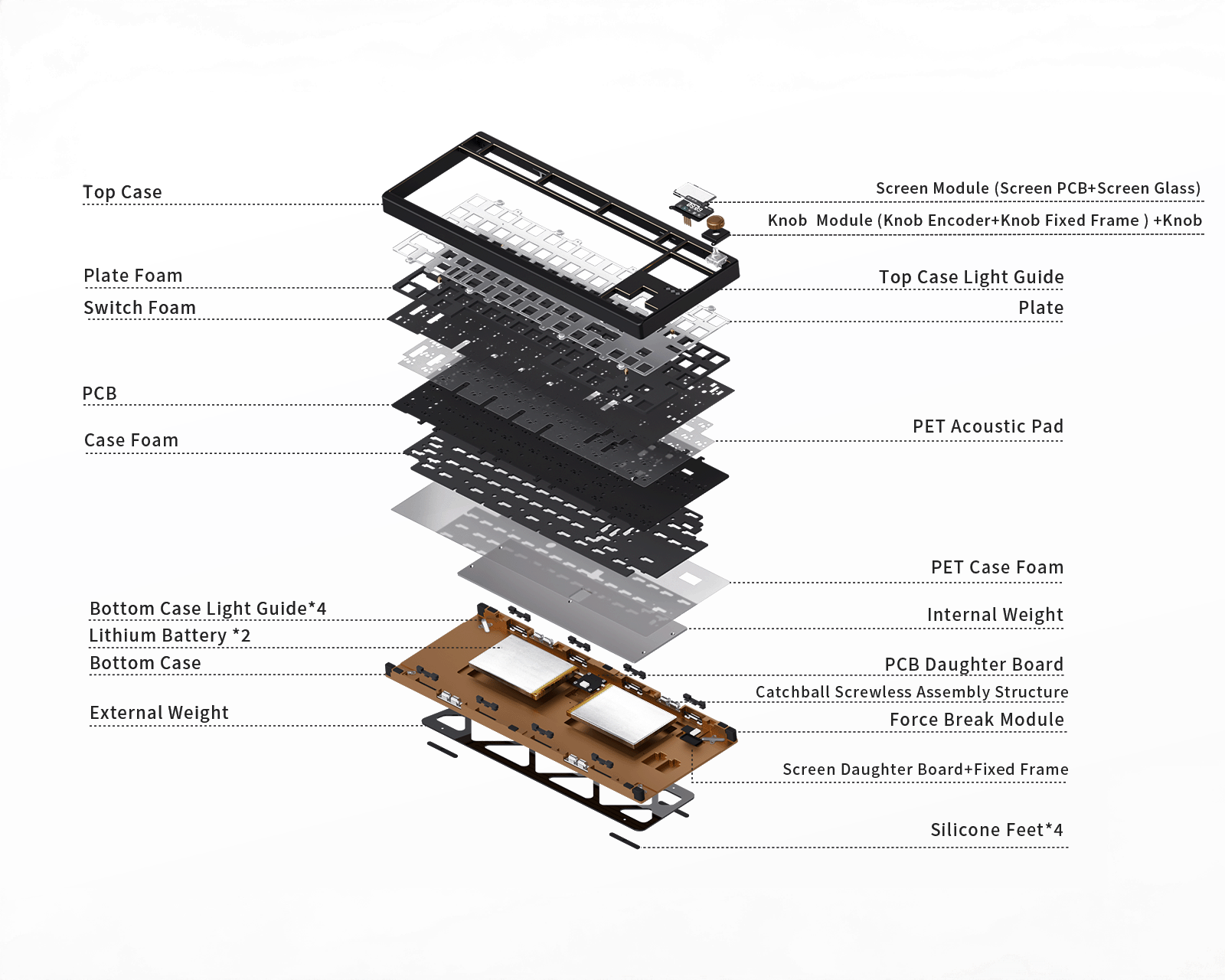

The build quality of the ZOOM TKL DYNA is characterized by its modular design with a tri-mode non-flex PCB, 8K polling rate with 0.6ms latency for wired connection and 4K polling rate for 2.4 GHz, ensuring fast response. It also has two 4000mAh batteries providing long usage. The keyboard supports ANSI and ISO layouts and has a typing angle of 6.7°, providing an ergonomic experience. Additional features include an upgraded contact arrangement and improved design of knobs to avoid connectivity issues.

Summary

• Aluminum chassis with modular design
• 8K polling rate and 0.6ms latency
• Flexible use for gamers and tech enthusiasts
• Supports both wired and wireless connection
• Multiple mounting options for individual typing experience

Article number:

Our article number: 35363
Manuf. article number: WS-ZOOM-TKL-MTLGR

Brand

Just a few years ago, in 2020, Wuque Studio was founded by two enthusiastic technology lovers. Since then, Wuque Studio has expanded rapidly, reaching out to enthusiasts all over the world. Their focus on innovative and unique design makes their custom keyboards and accessories a market favorite.

Through careful listening and consideration of feedback from their dedicated community of gaming and keyboard enthusiasts, Wuque Studio strived to create the perfect keyboards and other accessories for gaming. The aim is for the range to suit each user's needs and requirements through pioneering keyboard design and innovation projects.

Connection

Connection	2.4GHz, Bluetooth, USB
Wireless	Yes

Properties

Form factor	80%
Language layout	ANSI, ISO German, ISO Nordic, ISO UK
Backlight	Yes, RGB
Backlight color	RGB (16.8 m)
N-key rollover	Yes
Anti-ghosting	Yes
Hotswap	Yes
Color	Grey

Size & weight

Width	356.5 mm
Depth	139 mm
Height	34.2 mm

Warranty

Manufacturer's warranty

2 year warranty
