Product description
PC PeripheralsHeadsets & AudioExternal sound cards from xDuoo

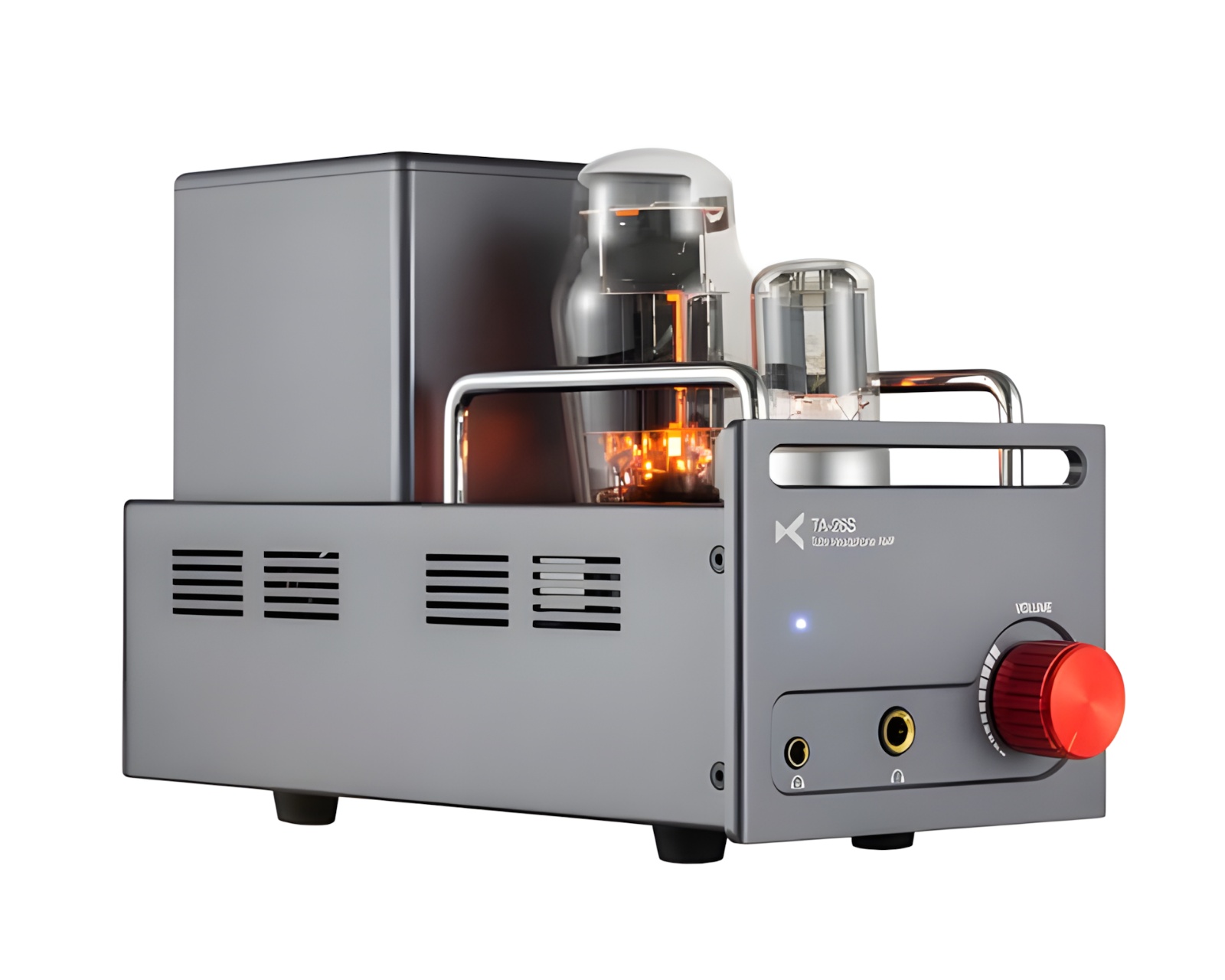

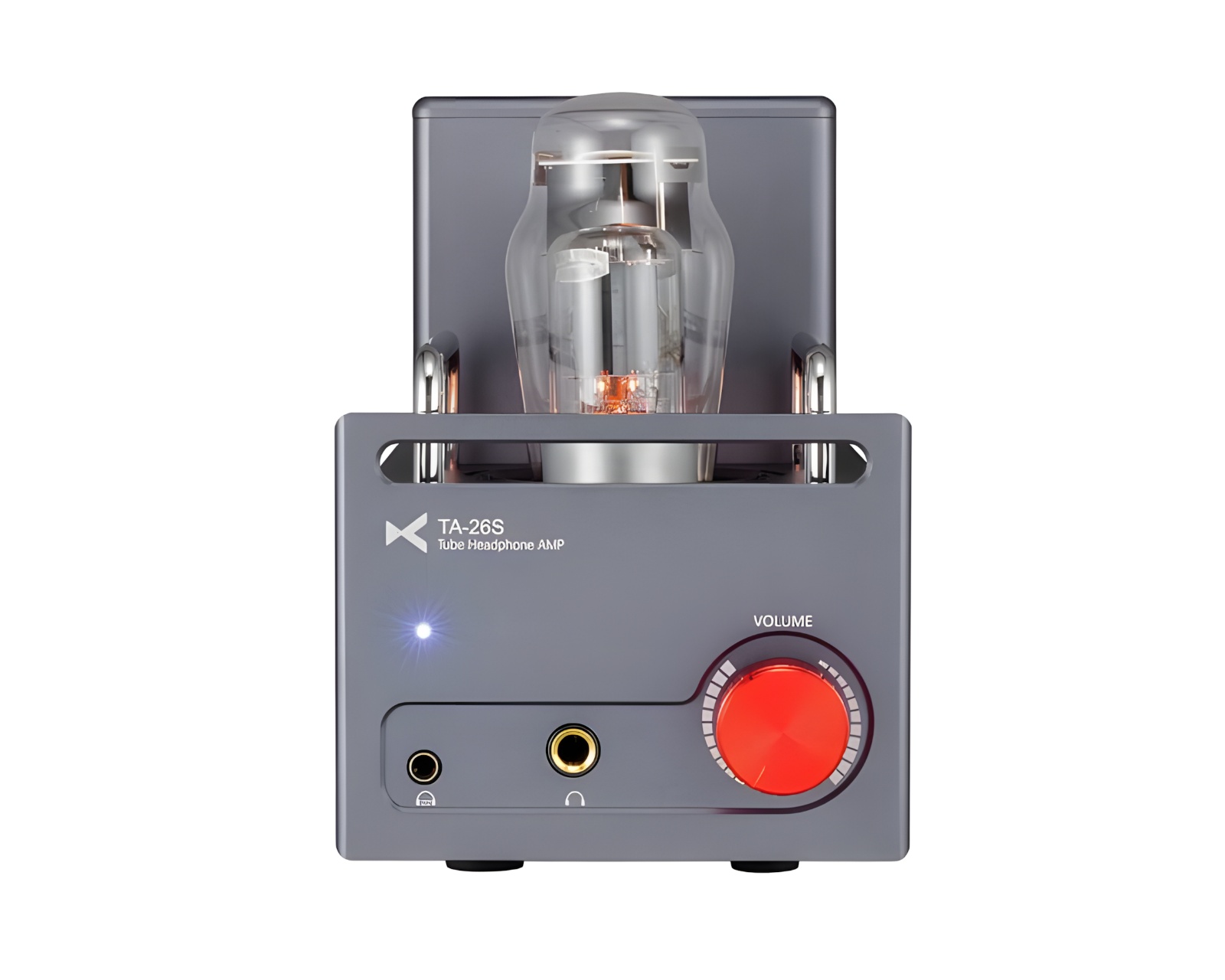

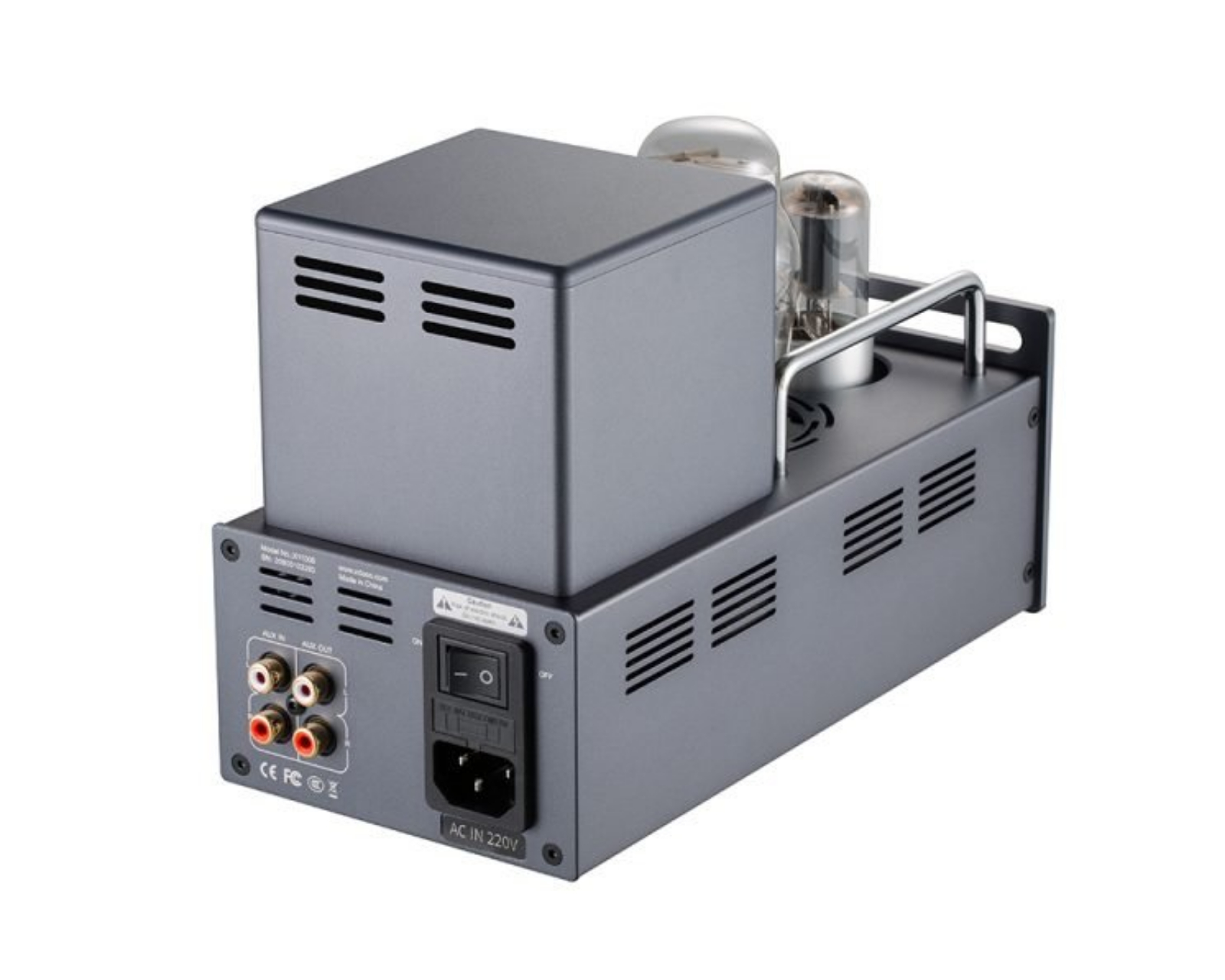

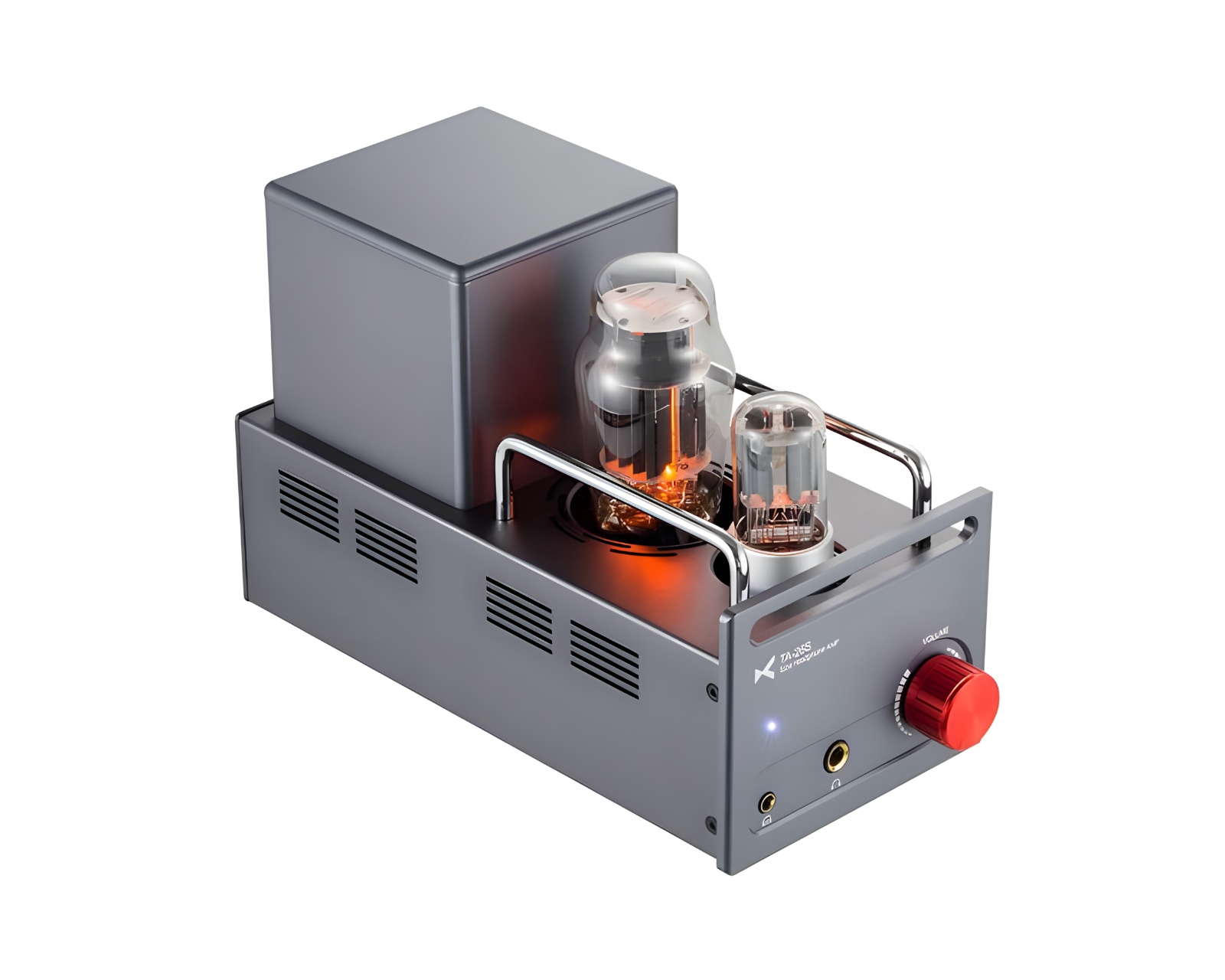

TA-26S is a tube-balanced headphone amplifier from xDuoo that offers a high-performance audio solution for headphone users. It features a 6N8P vacuum tube in the preamp stage and a 6N5P vacuum tube in the buffer stage. TA-26S is designed to drive headphones with impedances between 60Ω and 600Ω and provides an output power of up to 500mW with a total harmonic distortion of ≤0.1%. The product includes both a standard 6.35mm headphone output and a new 4.4mm balanced headphone output for higher sound quality. It is equipped with professional resistors and capacitors, contributing to a signal-to-noise ratio of 110dB. The frequency response ranges from 10Hz to 30kHz. The build quality is characterized by a sandblasted aluminum casing, providing a robust design. TA-26S has an RCA preamp function as well as an RCA line-out function. Summary- High-performance tube-balanced headphone amplifier
- Output power of up to 500mW, THD+N: ≤0.1%
- For headphone users with 60Ω to 600Ω impedance
- Preamp and line-out functionality
- Aluminum housing with sandblasted texture
Power Supply
AC100~120V / 220~240V
500mW (at 600/300Ω load)
10Hz~30KHz (±0.5dB)
Gain: +16dB
S/N (Signal-to-Noise Ratio): 110dB
THD+N (Total Harmonic Distortion + Noise): ≤0.1% (at 1KHz)
Suitable Headphone Impedance: 60Ω ~ 600Ω
Size: 25 x 11 x 16 cm
Weight: 3.9 Kg
Article number:
Our article number: 36497
Manuf. article number: 8413222399128
Brand
xDuoo (Shenzhen xDuoo Technology Co., Ltd.) is a Chinese manufacturer of audio equipment focused on high-quality DAC units, headphone amplifiers, tube amplifiers, and digital music players. The company targets both portable and desktop audiophiles, combining classic analog sound characteristics with modern HiFi technology.
By combining technical expertise, flexible product development, and competitive pricing, xDuoo has established itself as a strong player in the global HiFi market, offering products for both beginners and experienced users.
Specifications
Properties
| Color | Grey |
Warranty
| Manufacturer's warranty | 1 year warranty |
