xDuoo DM-01 USB DAC/AMP - Robot

Product description

PC PeripheralsHeadsets & AudioExternal sound cards from xDuoo

xDuoo DM01 is a USB DAC and amplifier from xDuoo. It offers wireless Bluetooth V5.4 connectivity and has a power output of up to 1.5W for headphones. It is designed for use with high-performance audio systems and gamers seeking improved sound quality.

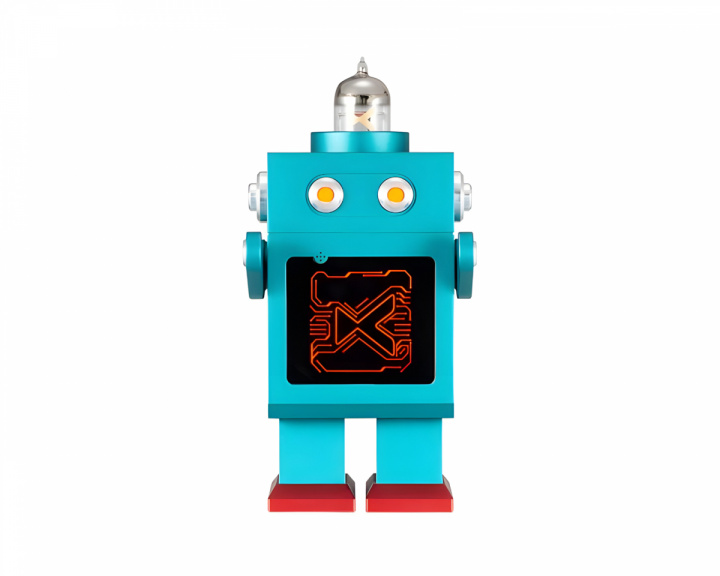

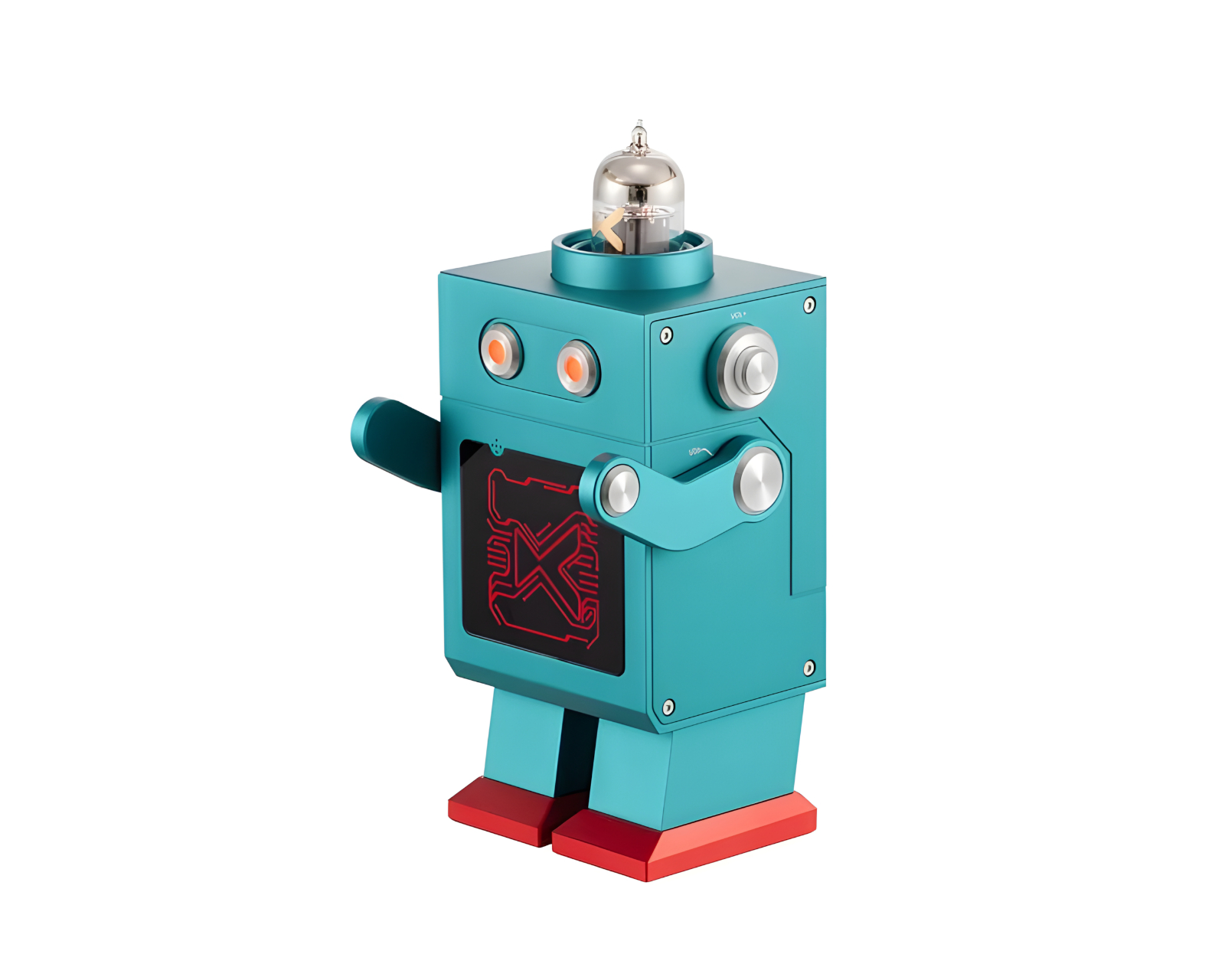

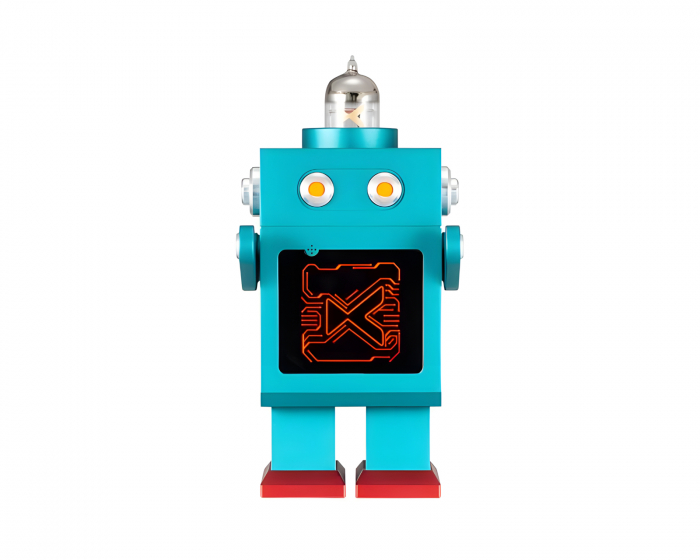

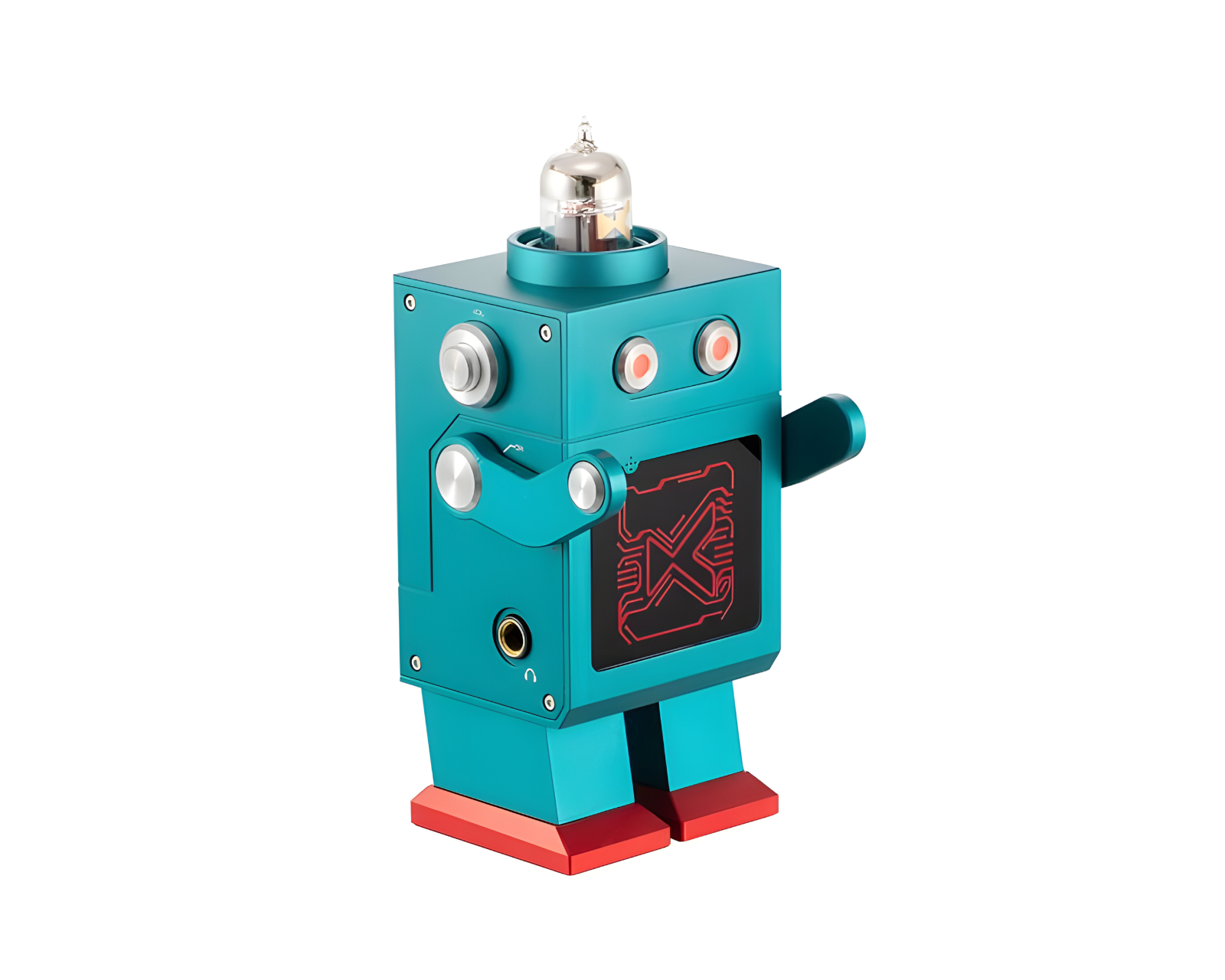

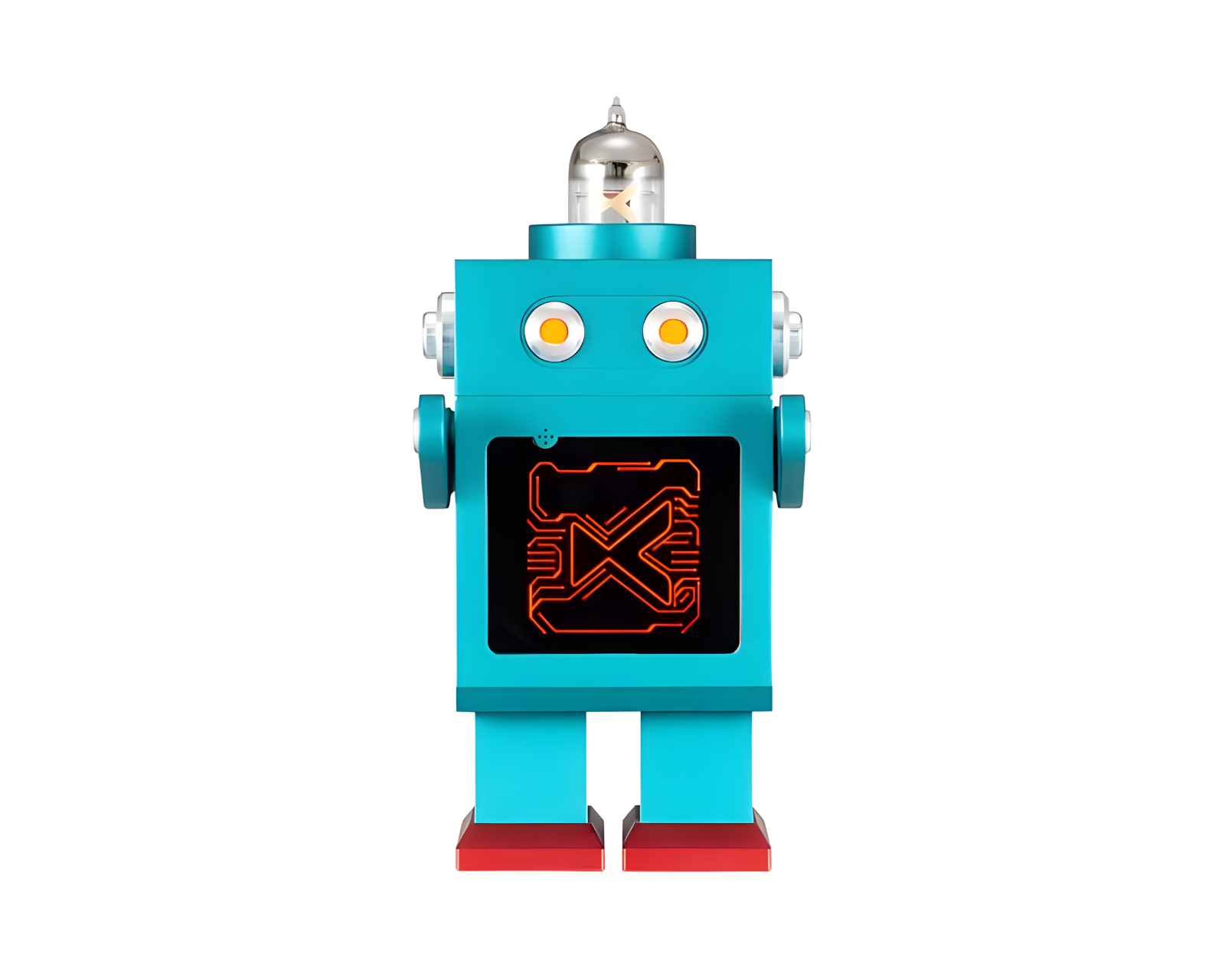

The product features a unique Cyberpunk style with a robot design and is made from high-quality aluminum alloy. The DAC is equipped with a CS43131 DAC chipset that supports 32-bit/384kHz PCM and Native DSD256. It has a hybrid amplification architecture with a 12AU7 tube preamp and a transistor buffer, providing rich and natural sound. The DM01 also supports MQA signal processing with 8x unfolding.

Summary

• Hybrid DAC and amplifier
• 1.5W output power
• For gamers seeking high sound quality
• Supports high-resolution audio formats
• Wireless Bluetooth V5.4 connectivity

Product Specifications:
Power Supply

• DC12V/2A

System & Compatibility

• Supported OS: Windows, Linux, Mac OS X, iOS, Android

• Bluetooth Formats: AAC, SBC, aptX, aptX Adaptive, aptX HD, LDAC, LE Audio (LC3, Aptx_Lite)

Audio Performance (Basic)

• Frequency Response: 20Hz–20kHz ($\pm$0.5dB)

USB Sampling Rate

• PCM: 16–32Bit / 44.1–384kHz

• DSD (DoP/Native): DSD64–DSD256

• DXD: 24–32Bit / 352.8–384kHz

• MQA: 8X

Other
Weight: 0.73 kg

Headphone Output

• Output Power: 1500mW @ 32$\Omega$

• THD+N: $\le$0.3% @ 1kHz

• SNR: 116dB

• Crosstalk: $\ge$67dB

Line Out

• Output Level: 6Vrms
• THD+N: $\le$0.2% @ 1kHz
• SNR: 116dB
• Crosstalk: $\ge$70dB

Article number:

Our article number: 36492
Manuf. article number: 749799562152

Audio output

	2,2
	116

Properties

Color

Turquoise

Size & weight

Width	17,5 cm
Depth	8,6 cm
Height	6 cm
Weight	730 g

Warranty

Manufacturer's warranty

1 year warranty
